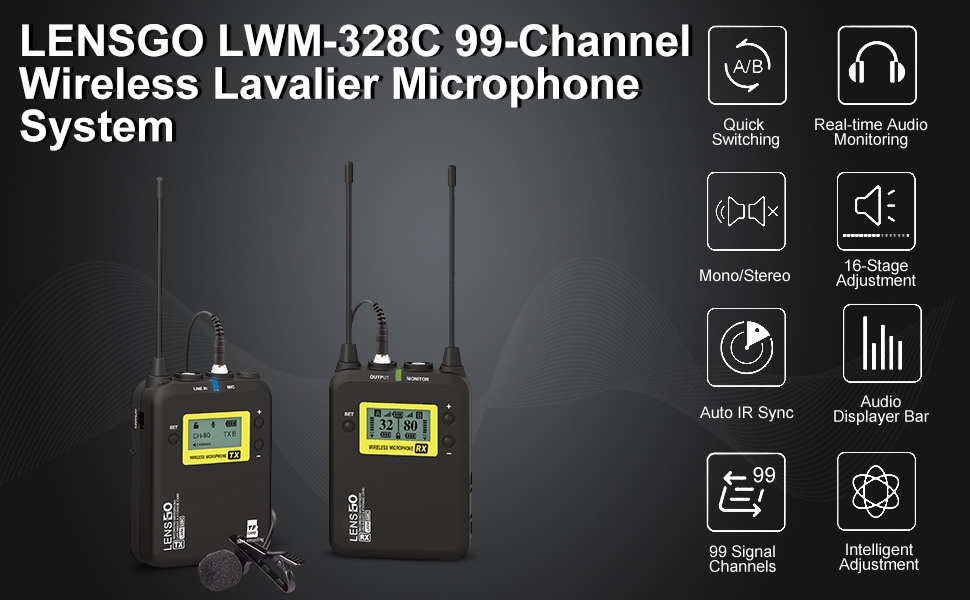

lensgo328C Filmmaker Kit Camera-Mount Wireless Omni Lavalier Microphone System(520-590MHz)

  • 【TF Card Sync Recording】TF card and wireless microphone transmitter record audio synchronously. You can select "Record Menu"-"Enable", insert the 32G (Max) TF card into the wireless microphone transmitter to prevent audio loss during real-time shooting and prevent audio recording loss due to external channel interference with breakpoints. Note: Not included TF card

  • 【Wide Compatibility】Wireless lavalier microphone system compatible with Nikon Canon Sony DSLR camera, camcorder, iPhone Android smartphone, iPad and More. Wireless lapel microphone is the best choice for YouTube live, Video recording, Audio recording, Vlog recording, Interviews, Micro film recording, Podcasts, Wedding, Mobile journalists, Content creators, ENG and EFP etc

  • 【99 UHF Selectable Channels】Record crystal-clear, distortion-free audio. Adopts international UHF wireless transmission, 1 receiver triggered by 1 transmitter, which can be used for multiple devices working together, adjustable RF signal strength or auto-scanning for quick channel selection to A/B group.With LCF low cut filtering Mode and Manual / Auto sync.

  • 【Working Hours and Range】The wireless lavalier microphone system, each unit is powered by two "AA" batteries (Not included) for up to 5 hours of operation. The farthest range 500 ft (150m) in open areas, best receiving range is within 246 ft (75m).

  • 【Guarantee】We accept returns within 30 days without any reason & 2 years LENSGO warranty & lifetime customer service. Please feel free to contact us if you have any problems, we are always do do our best to improve our product and better services.



Buy now


Learn how to use: video tutorial

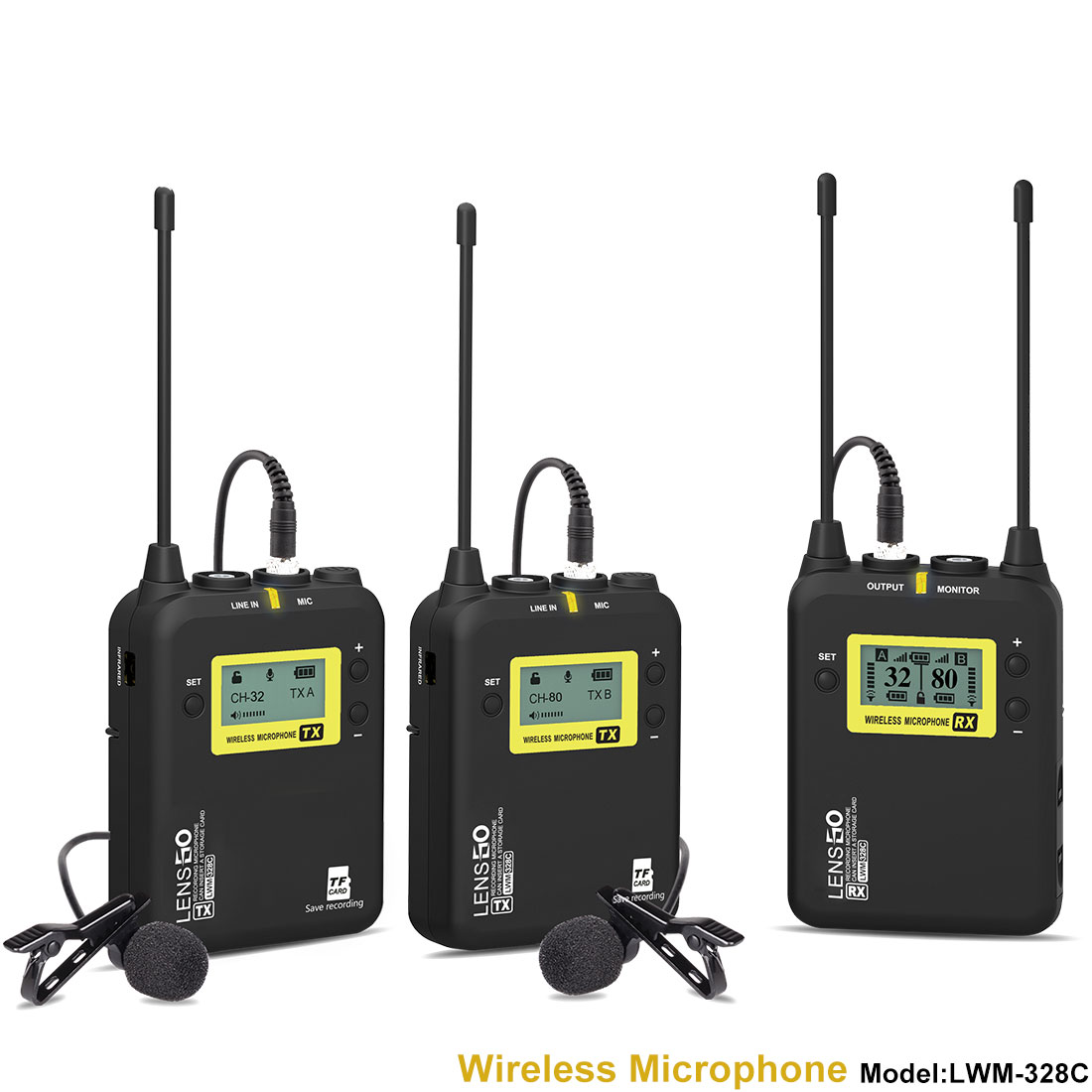

LENSGO LWM-328C Wireless Microphone: Sounds in Sync Everywhere!

LENSGO LWM-328C Wireless Lavalier Microphone system, wireless lavalier lapel mic with 1 Receiver & 1 Transmitter for iPhone Android Smartphone Canon Nikon DSLR Camera. It is the best choice for YouTube Facebook Live Vlog recording Interview Program Hosting Podcast Presentation Church Wedding ENG EFP and More

It uses UHF wireless technology and LED high-resolution lattice screen: 99 channels in total, Auto-scanning, Auto Channel-match, audio LCF mode,RF signal strength adjustment,MIC/LINE IN input dual selection, power monitoring at receiver end, sound pickup dynamic display, back light adjustment and other functions, at the same time with strong shielding anti-noise performance, it’s a high-quality microphone to broadcasting level.

NOTE:

1. Insert a card to record, a new TF card or format an old TF card, this TF must always be used with the wireless lavalier microphone

2. TF synchronization recording files may not be directly put into Premiere Pro and other video editing software, you need to convert the format of the recording file to put it into the video editing software.

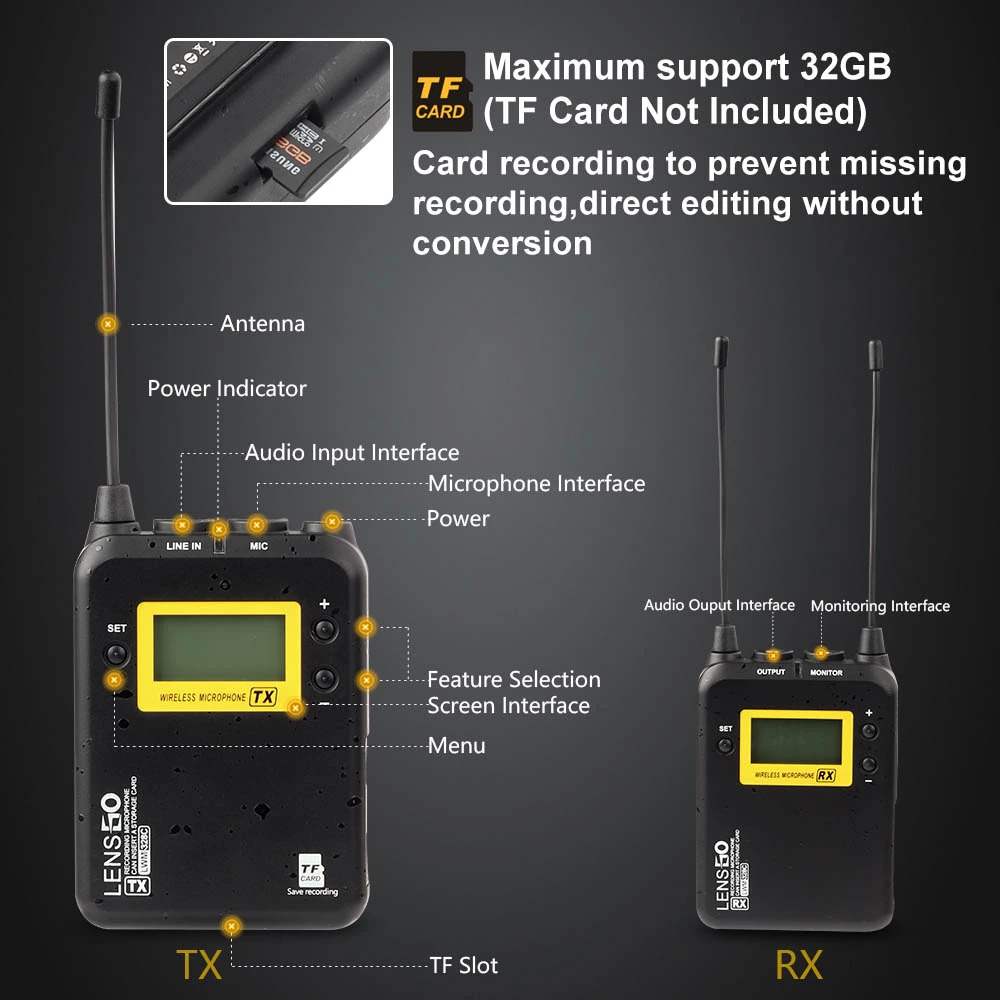

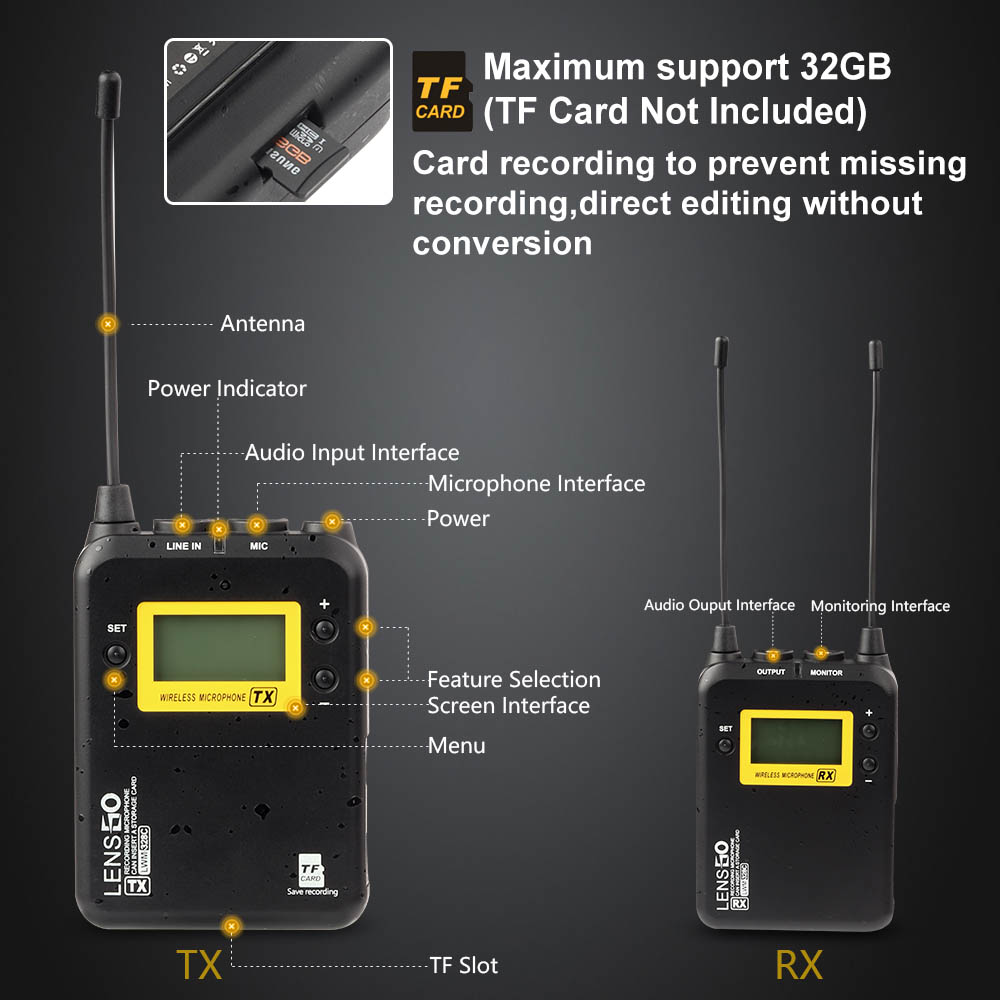

TF Card recording

Insert 32G TF Card Into Transmitter, record and save the audio in real time when recording, to prevent the situation of missing recording (Not included TF card).

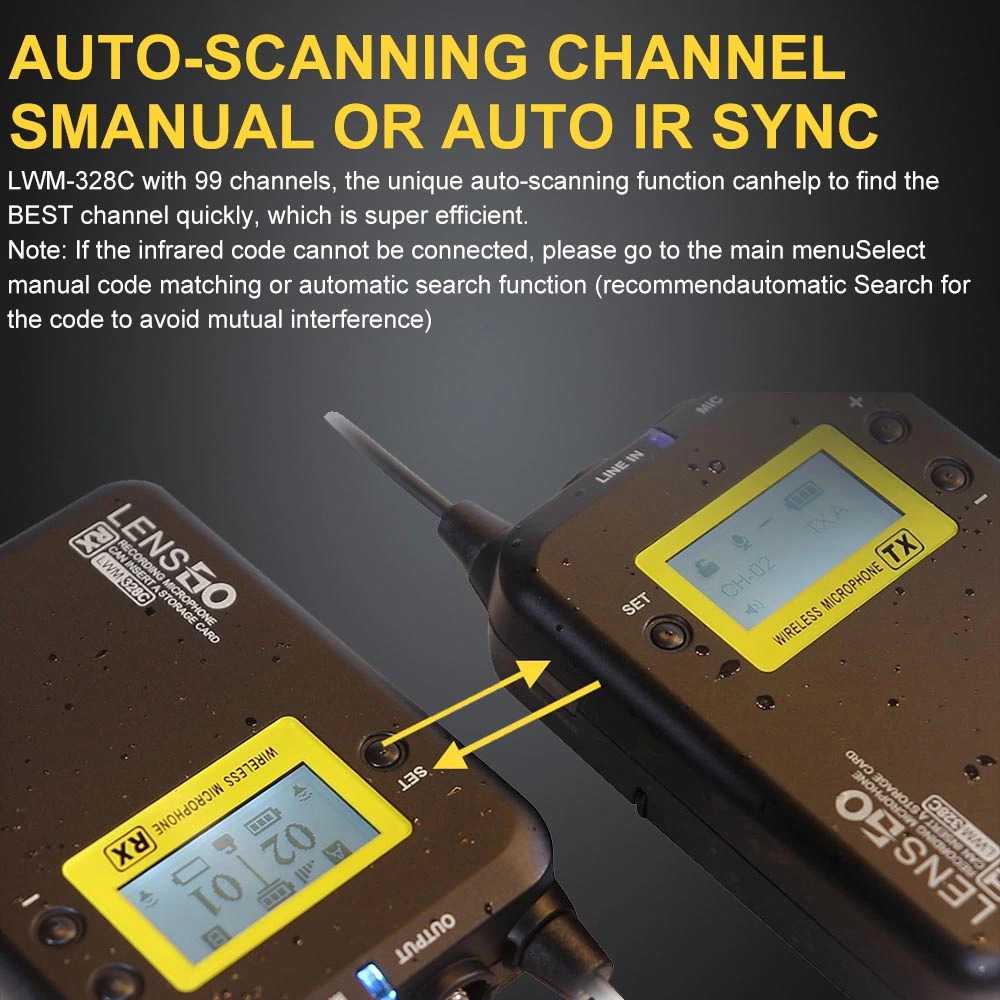

99 UHF Selectable Channels

LWM-328C provides 99 wireless channels for your choice. Using auto-scanning function to find the best channel, you don’t need to worry about frequency interference, even multiple devices working together.

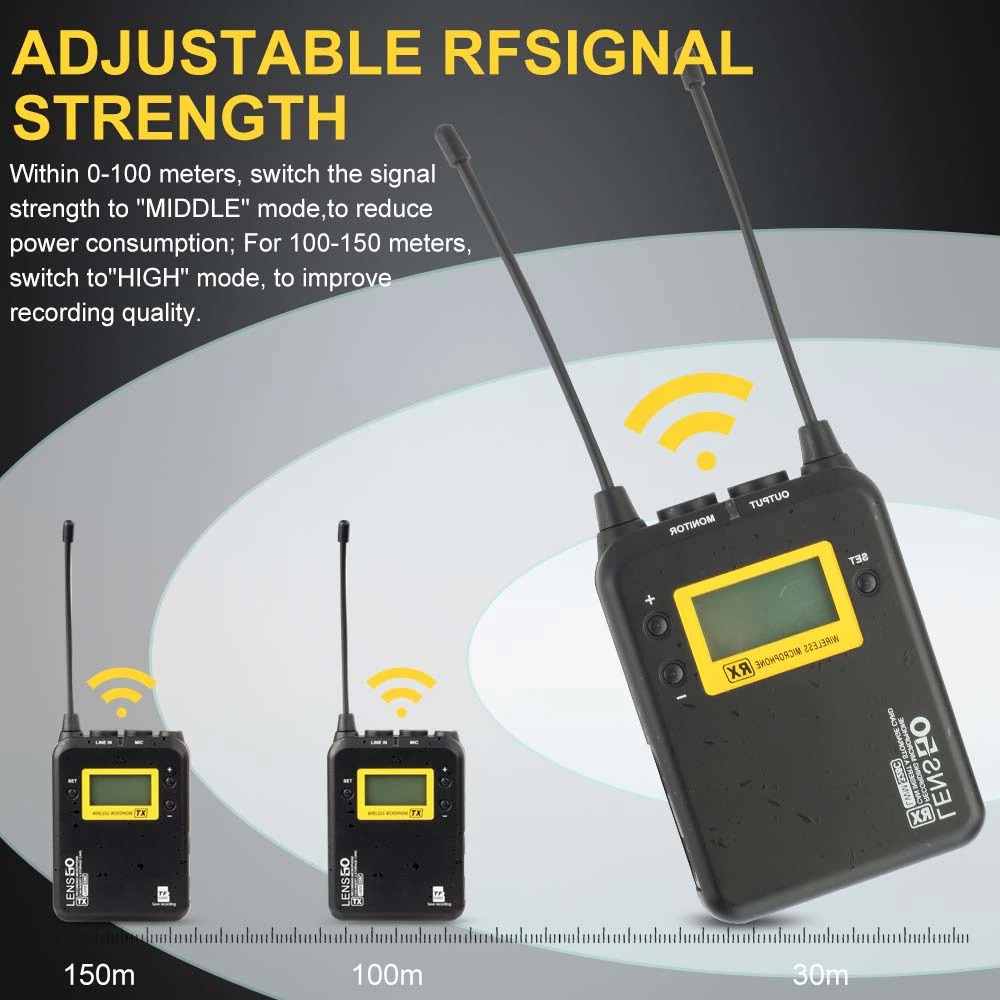

Working Distance is Up to 150m

"High" TX Power means operating distance up to about 150 meters(492fts); "Middle" TX Power means operating distance up to about 0~100 meters(328fts), which is superior than many devices on the market.


LCF Mode

In a noisy environment, you can choose LCF mode to cut off the low frequency part for pure and clear output. However, when you make a field recording, please turn to normal recording mode and get the natural and original sound.


Mountable and Portable

Clip-on microphone for attaching them to clothes. The receiver has a shoe adapter for quick mounting to a DSLR or mirrorless cameras, plus a 1/4'' thread for easy attachment to tripods, light stands and other mounting hardware.

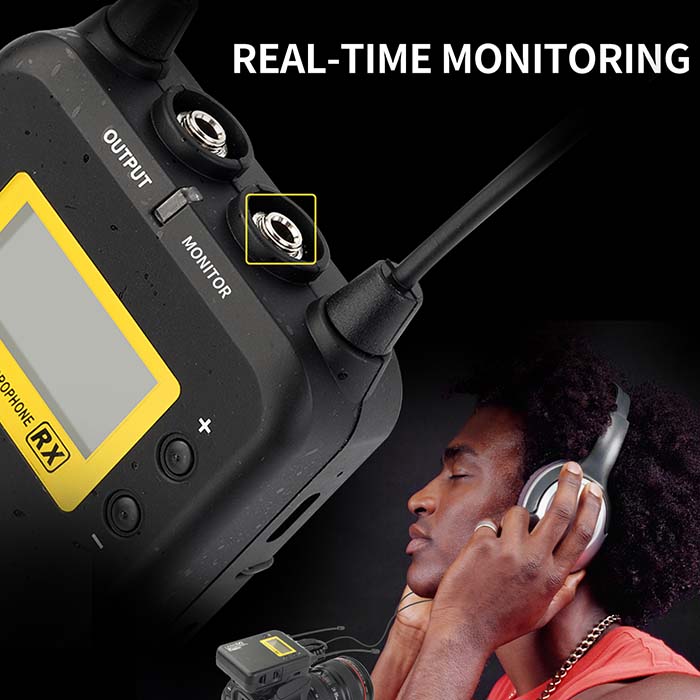

REAL-TIME MONITORING

Receiver (RX) with the real-time monitoring function, you can test whether it is working normally during recording. 328C Wireless Lavalier Lapel Microphone brings you more professional and convenient recording




Specification

Specs

Polar Pattern
Omnidirectional
Channels

20

Wireless Frequency570.0 MHz - 589.0 MHz
Working Distance50m(LOS),20m(NLOS)
Input Frequency Range30Hz-20KHz
Receving Sensitivity
-35dB(+/-3dB)/0dB=1vPa,1kHz
Delayed<20ms
RF Output Power8dbm
Signal/Noise78
Maximum SPL(Mic)120dB SPL
Maximum Input Level(3.5mm)
150mv
Microphone Preamp Gain
20db
Equivalent Noise Level(A-Weighted)
-95db
Audio Output Jack

1 x 1/8" /3.5mm TRS Line Out

1 x 1/8" /3.5mmTRS Headphone Output

Input
Built-in Mic/External Mic
Battery

Built-in 500mAh Rechargable Li-Battery(Mic-USB)

Working Time
4H
Charging Time
1.5H
Antenna
Spring Antenna
Operating Temperature

-20°C to + 80°C

Storage Temperature
0°C to + 40°C
Weight

30g(TX or RX)

Dimensions
67mm(Length)*26mm(Width)*30mm(Height)







FAQs


Yeap,there are two connect styple.

A:Director side let the transmitter connect with mixer use the line in.

B:Singer take the transmitter use the 3.5mm jack.

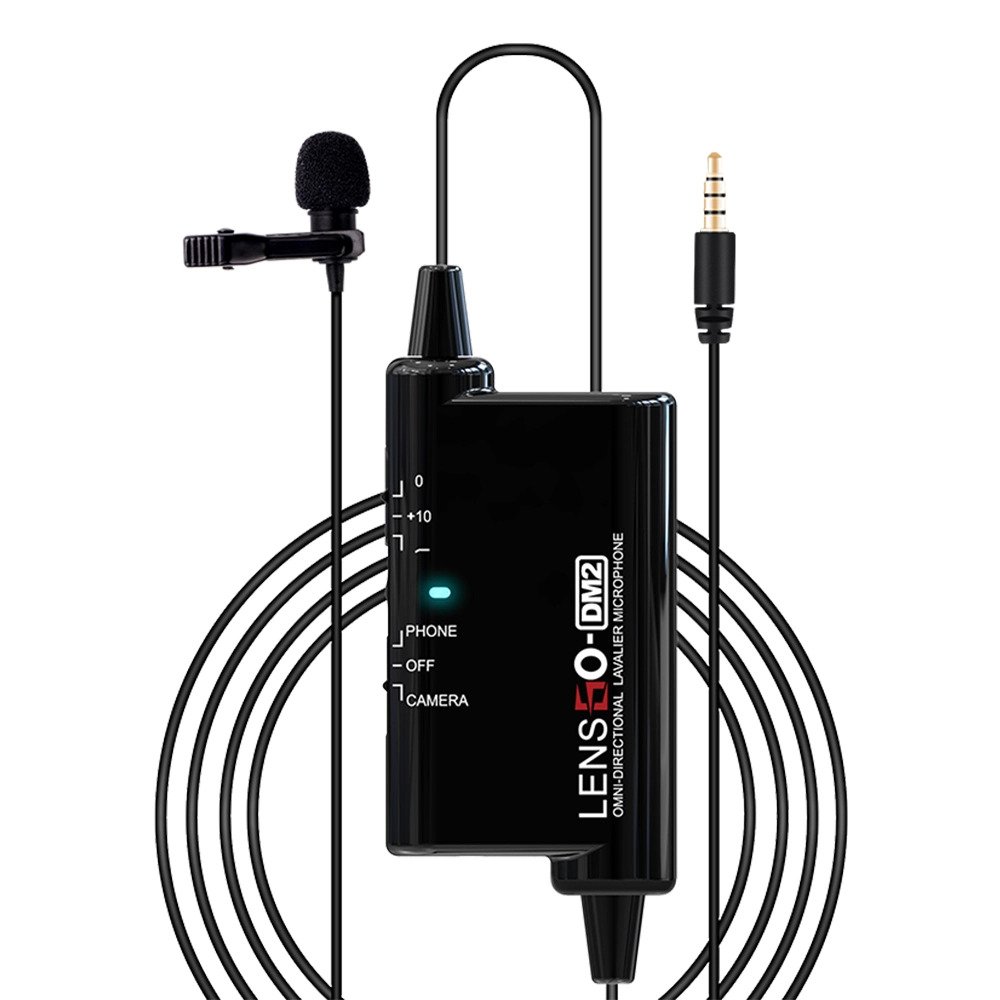

Yeap,you can get decent sound from either. Most of our customer use lensgo328c connect with lensgodmm1 and lensgodmm2.

You need to get a trrs adapter to connect your smartphone. If you use iPhone 7 up, you need to connect your original lightning cable.

It only have two ways of power supply:
A. Internal AA Battery 2pcs
B. External Type-C charging direcly charge the rechargable AA battery.remember it is rechargable battery.you'd better use 1.2V NiMH battery

When you are charging the red light is always on,at the full of charging the red light flash,full of charge red light gose off.

Yes,it can work with you camera.gropro hero 7 has a USB jack.our lensgo328c wireless microphone comes with 3.5mm audio output cable, if you use correct adapter, so this microphone can fit the gropro hero 7 camera well.

This microphone has one receiver and two transmitters. If you want it to output stereo, you can set the two transmitters to A/B Group separately, then select the output mode to stereo mode in the receiver settings.

Please adjust the recording volume of the camera to 3 or 4 or 5,then adjust the transmitter mic gain in -3 or -2  or -1,depent on your device,the last one you should adjust the receiver volume  to a little bit small.

It can record the longest distance is 150 meters without barrier,you can adjust the channel to 50~99 channel to ensure it can record longer.

The 32G memory card can record 180H,insert the memory card and reset,finish the record ,please stop the function of record.


It can be used for 5 Hours.
